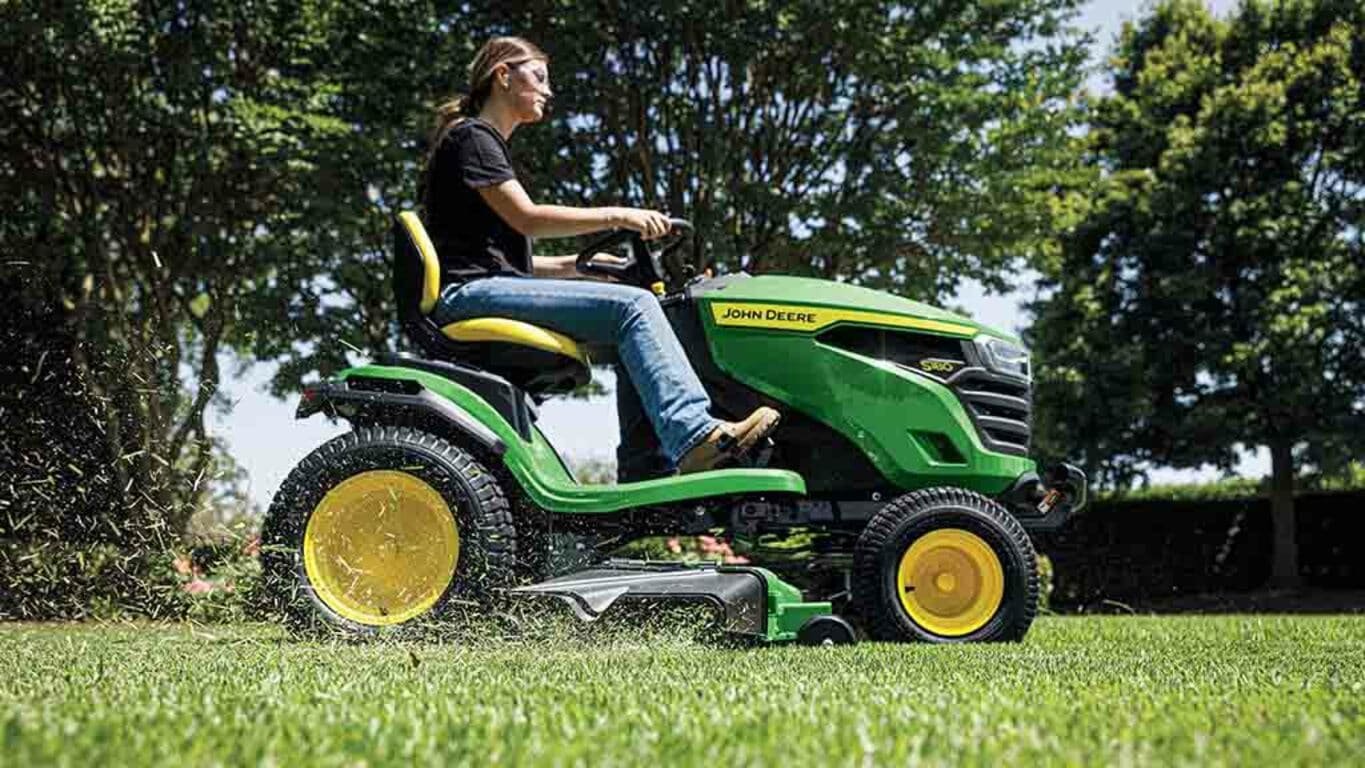

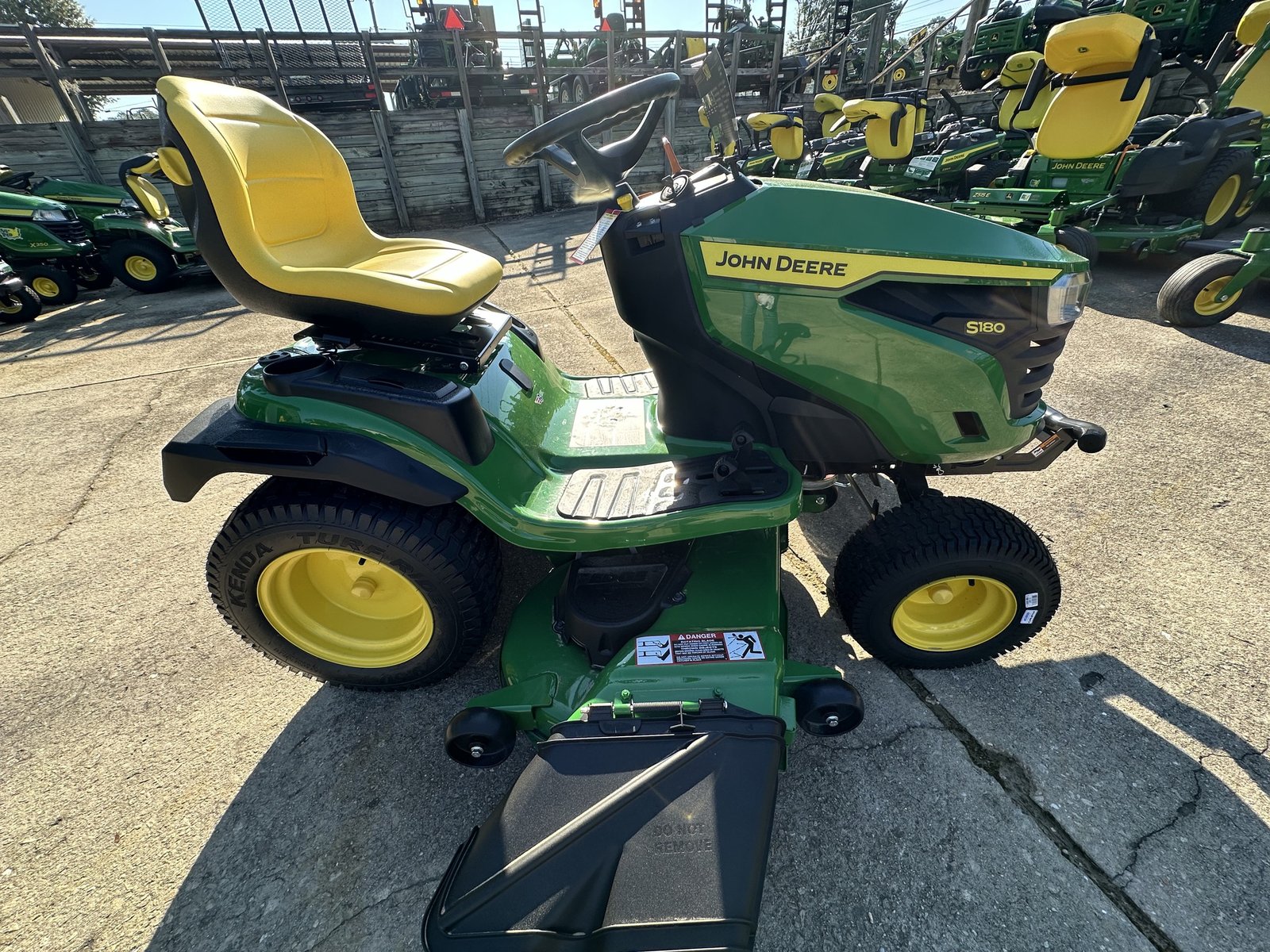

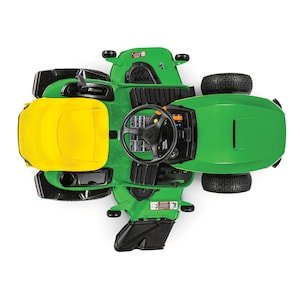

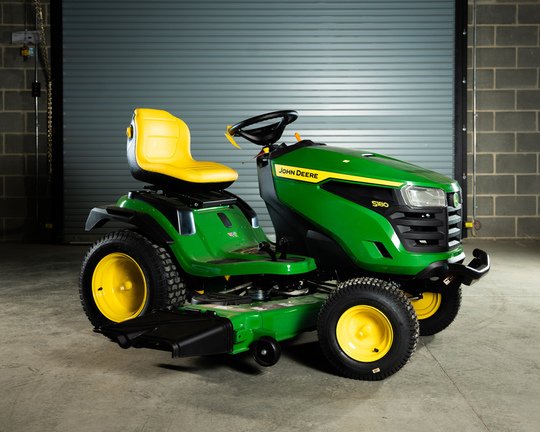

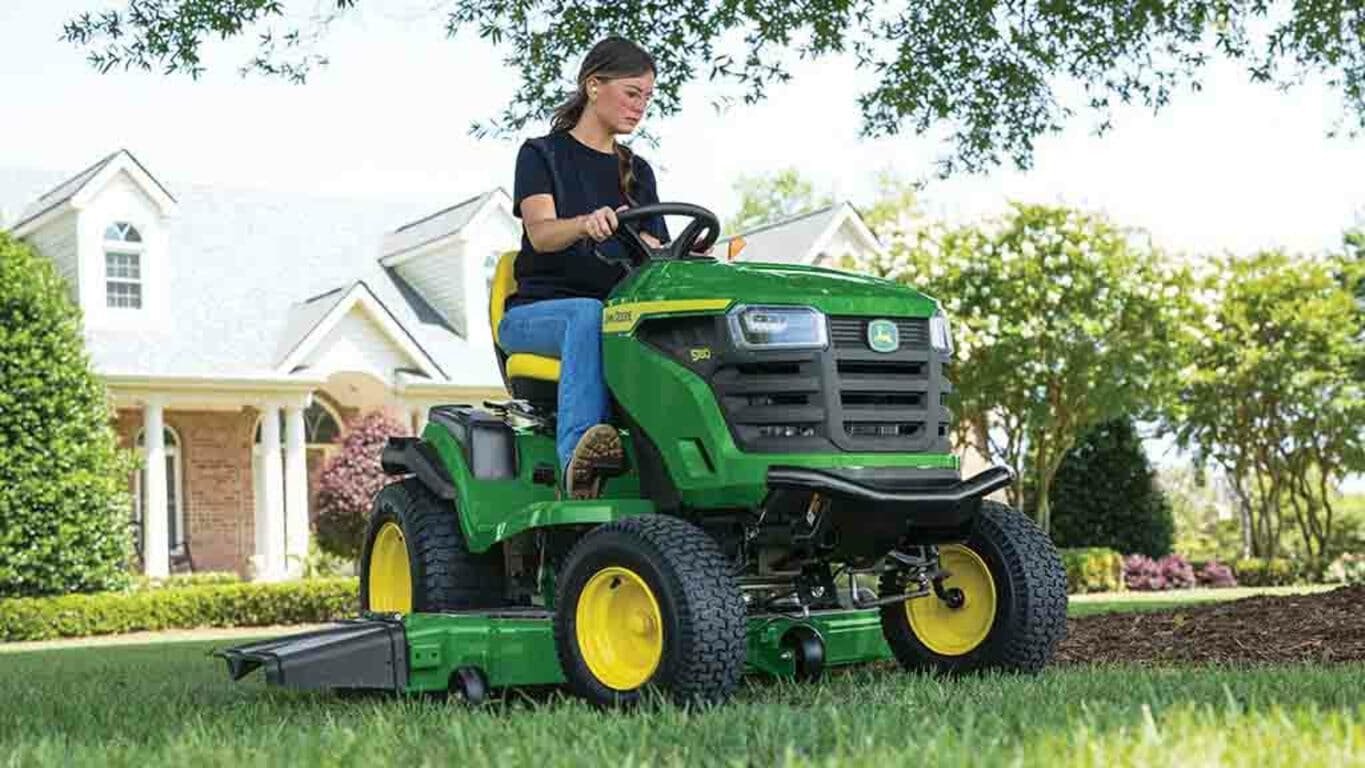

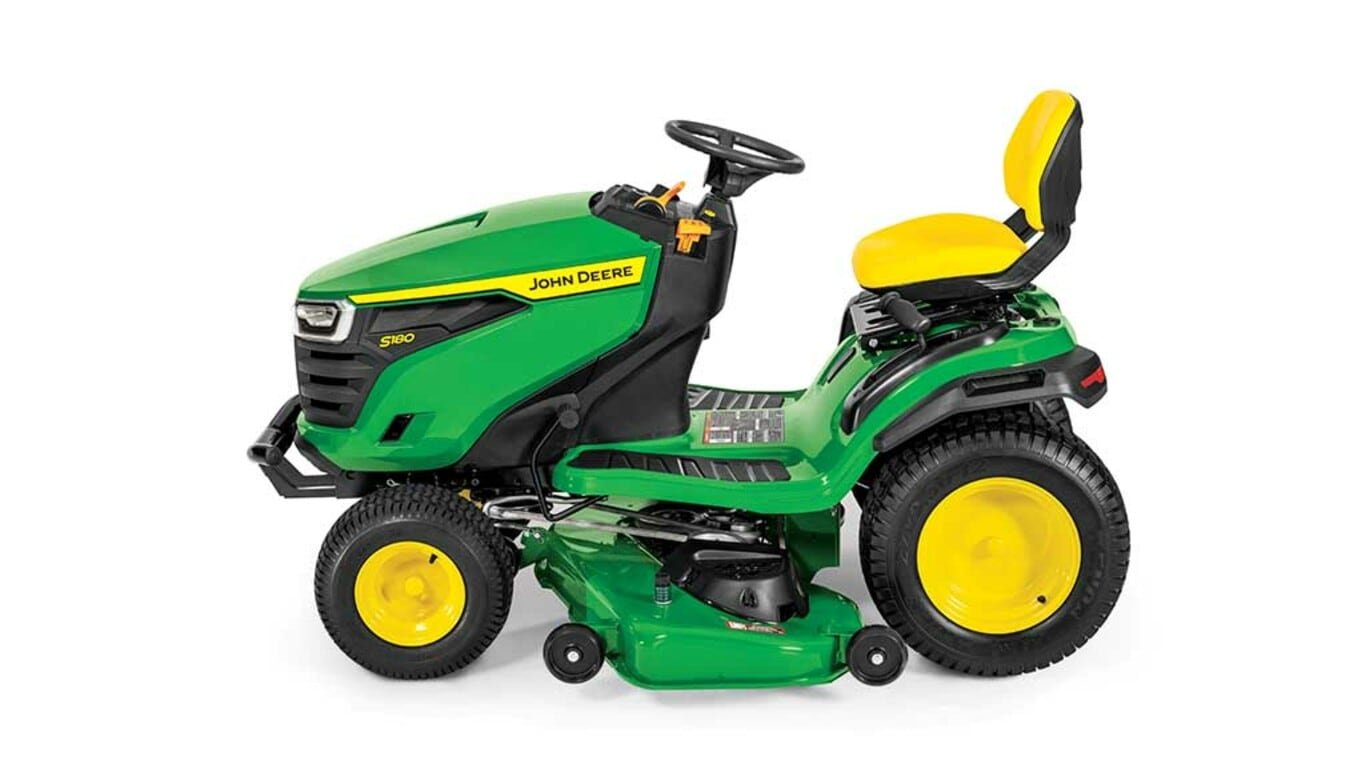

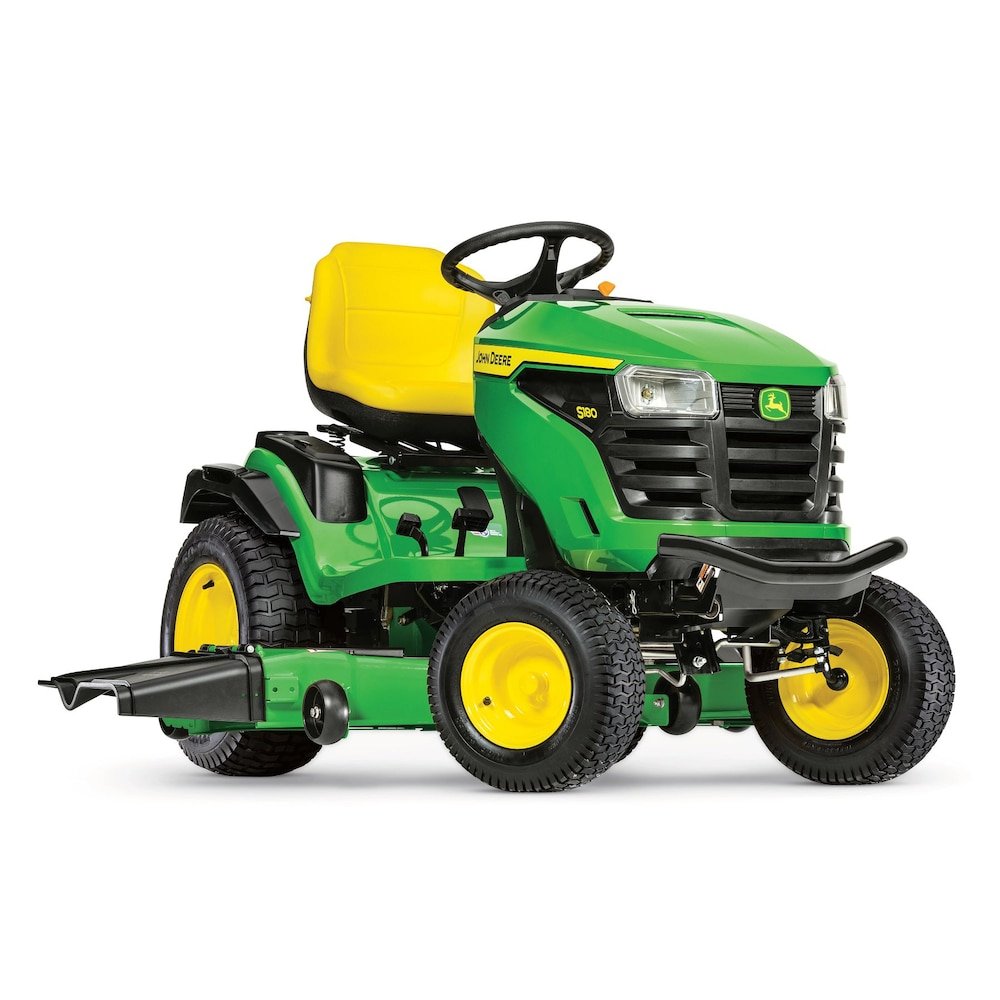

John Deere S180 54-inch Deck 24 HP Hydro Lawn Tractor

The John Deere S180 Lawn Tractor features a powerful 24 HP Extended Life Series (ELS) V-Twin engine engineered for durability and reliable performance across large residential yards. Equipped with a 54-inch Edge™ mower deck constructed from 11-gauge stamped steel, this tractor delivers wide cutting coverage with optimal airflow for clean, uniform turf management.

Product Description

Built on a solid, full-length welded steel frame with a heavy-duty cast-iron front axle, the S180 is designed to handle demanding outdoor conditions while maintaining frame stability and structural integrity. It features a heavy-duty hydrostatic transaxle controlled by side-by-side foot pedals, offering seamless forward and reverse speed adjustments without requiring gear shifting.

Operating features include an electric Power Take-Off (PTO) clutch for effortless mower deck engagement and the John Deere Easy Change™ 30-Second Oil Change System, allowing users to swap engine oil cleanly and efficiently without draining. The operator station includes a 15-inch open-back adjustable seat with lumbar support, standard cruise control, an easy-read digital fuel gauge on the dashboard, and bright LED headlights for enhanced visibility during low-light operation.

Key Applications

• Mowing large residential lawns and properties over 2 acres

• Towing lawn carts, spreaders, aerators, and utility attachments via rear hitch

• Clearing light snow using compatible front blades or snow thrower attachments

• Leaf and grass clipping collection using optional bagging systems

Specifications

• Model: John Deere S180

• Engine Power: 24 HP (17.9 kW)

• Engine Type: V-Twin Extended Life Series (ELS), 724 cc

• Fuel Capacity: 2.4 US gal (9.1 L)

• Transmission Type: Heavy-Duty Hydrostatic 2-Wheel Drive (K46)

• Forward Speed: 0 – 5.5 mph (0 – 8.9 km/h)

• Reverse Speed: 0 – 3.2 mph (0 – 5.2 km/h)

• Mower Deck Width: 54 in (137 cm) Edge™ Mower Deck

• Mower Deck Material: 11-gauge, 0.120-in (3 mm) stamped steel

• Cutting Height Range: 1 in to 4 in (2.5 cm to 10.2 cm) across 13 positions

• Deck Engagement: Electric PTO Clutch

• Anti-Scalp Deck Wheels: 5 adjustable gauge wheels

• Turning Radius: 18 in (45.7 cm)

• Front Axle: Cast iron with sealed ball bearings

• Front Tires: 16 x 6.5-8

• Rear Tires: 22 x 9.5-12

• Overall Length: 75.3 in (1913 mm)

• Overall Width (with deck): 67.0 in (1702 mm)

• Weight (without fuel): 526 lb (239 kg)
