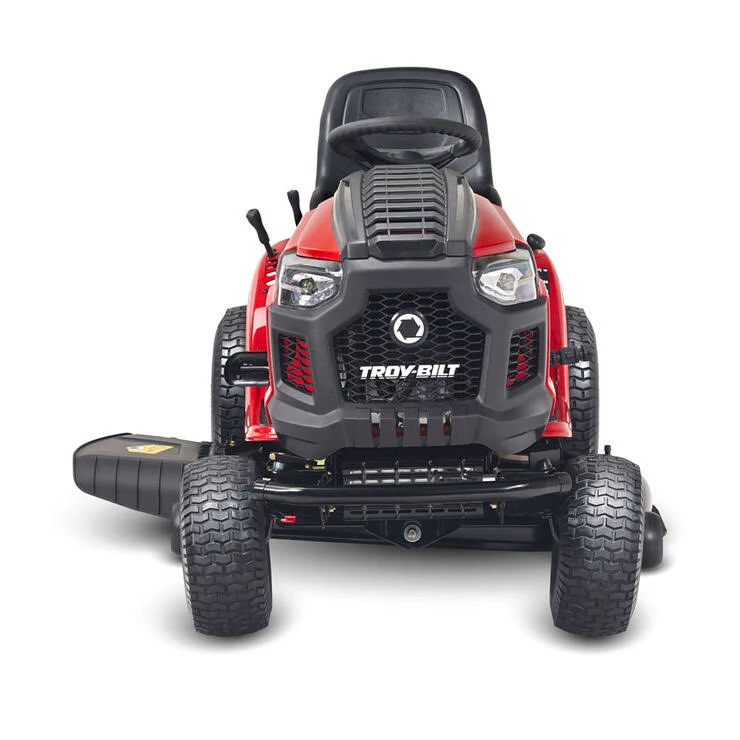

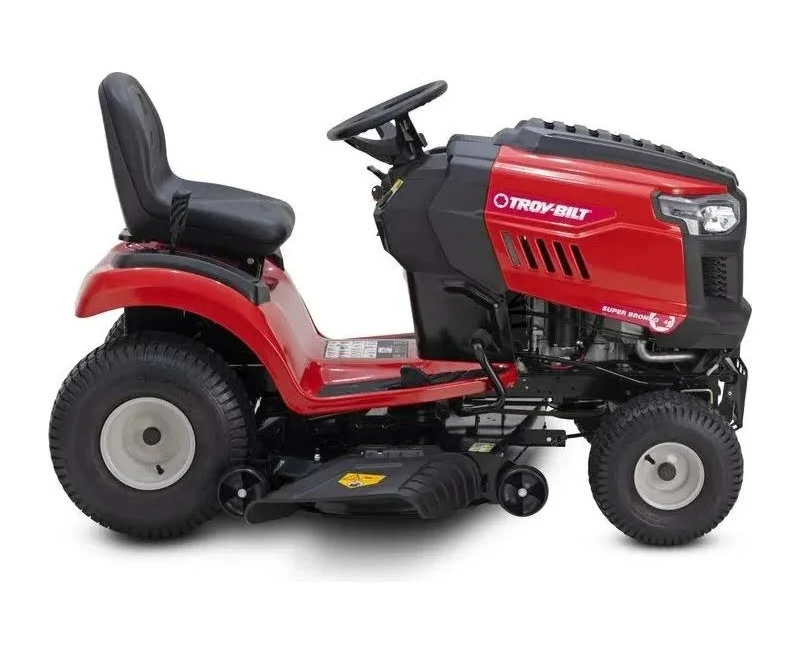

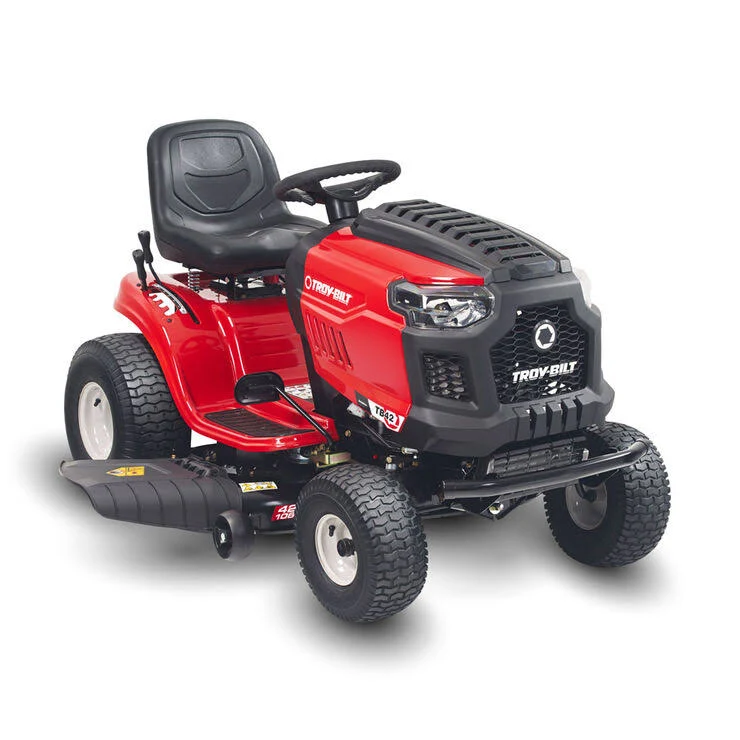

Troy-Bilt Bronco 42B2 Riding Lawn Mower

The Troy-Bilt Bronco 42B2 Riding Lawn Mower is a reliable, user-friendly lawn tractor engineered to make residential yard maintenance efficient and comfortable. Powered by a robust 17.5 HP 500cc Briggs & Stratton single-cylinder engine with pressure lubrication, it delivers dependable power to manage lawn sizes up to 1.5 acres. The mower features a foot-pedal controlled Continuously Variable Transmission (CVT) AutoDrive system that operates smoothly like an automatic vehicle, providing seamless speed control without manual shifting.

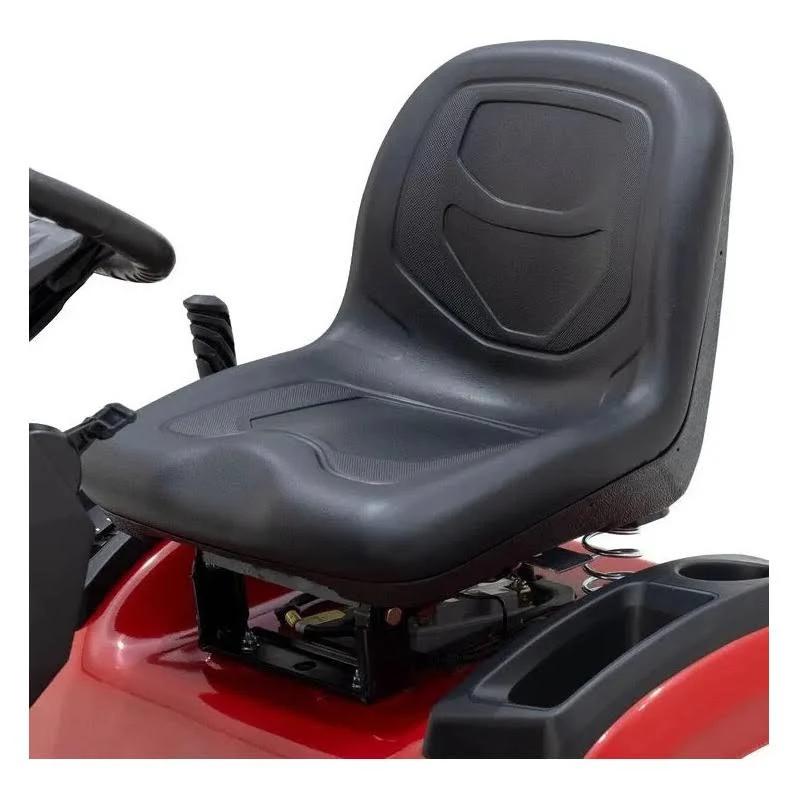

Constructed with a heavy-duty robotically welded Step-Thru frame, this riding mower allows for easy mounting and dismounting with generous legroom. Its 42-inch 12-gauge stamped steel cutting deck utilizes two blades and features a 5-position height adjustment lever, enabling versatile cutting heights between 1.5 inches and 3.75 inches. Equipped with anti-scalp deck wheels and an 18-inch turning radius, it easily maneuvers around trees, borders, and obstacles while protecting turf from damage. Added operator conveniences include standard headlights, a high-back adjustable seat, vibration-reducing rubber footpads, a deck wash port, and a rear tow hitch for pull-behind attachments.

Specifications

• Model Name: Bronco 42B2

• Model Number: 13AN78BS563 / 13AN78BSA66

• Engine Type: Briggs & Stratton Single-Cylinder PowerBuilt

• Engine Displacement: 500 cc

• Engine Output: 17.5 HP

• Lubrication: Fully pressurized lubrication system

• Fuel Tank Capacity: 5.15 Litres (1.36 US gallons)

• Starter System: Electric start via 12V AGM battery with ignition key

• Transmission Type: Foot pedal controlled Continuously Variable Transmission (CVT) AutoDrive

• Maximum Speed: 8.6 km/h (5.5 MPH) forward / 4.8 km/h (3.0 MPH) reverse

• Deck Width: 42 inches (106.7 cm) side-discharge

• Deck Shell Material: 12-gauge stamped steel

• Cutting Height Range: 1.5 inches to 3.75 inches (5-position manual adjustment)

• Number of Blades: 2

• Anti-Scalping: 2 front gauge wheels

• Turning Radius: 18 inches (45.7 cm)

• Front Axle Construction: 14-gauge steel / Cast iron

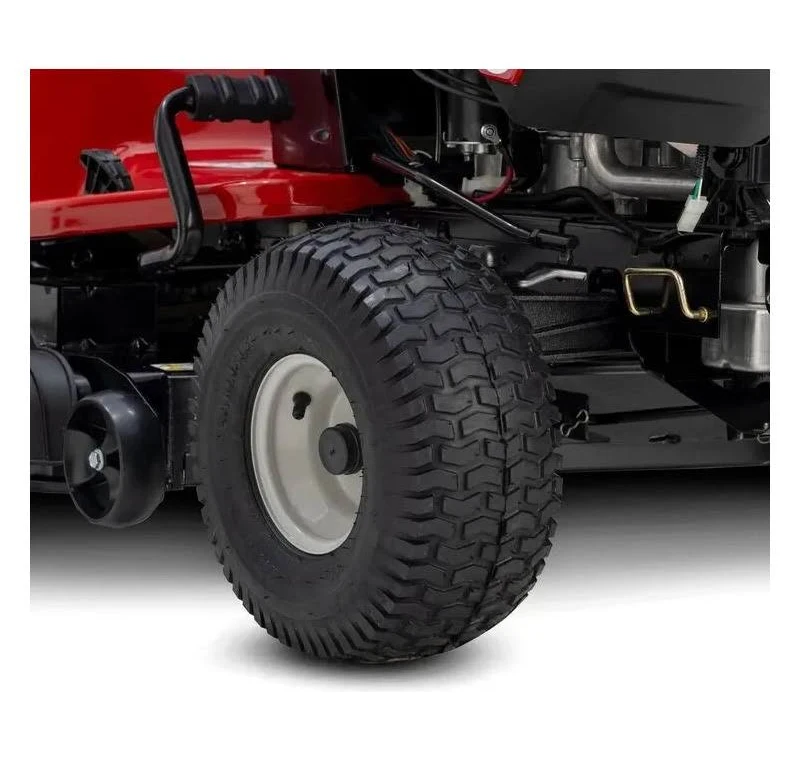

• Tire Sizes: 15″ x 6″-6″ front / 20″ x 8″-8″ rear (Turf Saver tread)

• Deck Wash Port: Integrated hose attachment for deck cleaning

• Rear Tow Hitch: Standard rear hitch for accessories (carts, spreaders, aerators)
